| 615 Six-Part Braided Wire Rope Sling | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Rope Dia. (in.) | Width of Body | Thickness of Body | Rated Capacity – Tons* | Eye Dimensions | Slip Thru Thimble ST | Heavy Thimble HT | ||||

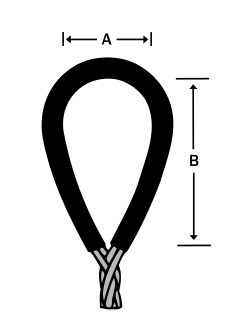

| Vertical | Choker Hitch | Basket Hitch | A | B | ||||||
| XIP® IWRC | #3/32 | 7/16 | 1/4 | 0.42 | 0.37 | 0.84 | 2 | 4 | w-2 | 1/4 |
| #1/8 | 9/16 | 3/8 | 0.84 | 0.74 | 1.7 | 3 | 6 | w-2 | 5/16 | |
| 3/16 | 13/16 | 1/2 | 1.6 | 1.4 | 3.2 | 4 | 8 | w-3 | 1/2 | |
| 1/4 | 1-1/8 | 11/16 | 2.9 | 2.5 | 5.7 | 5 | 10 | w-4 | 5/8 | |
| 5/16 | 1-3/8 | 7/8 | 4.4 | 3.9 | 8.9 | 6 | 12 | w-4 | 3/4 | |
| 3/8 | 1-11/16 | 1 | 6.3 | 5.5 | 13 | 7 | 14 | w-5 | 7/8 | |
| 7/16 | 2 | 1-3/16 | 8.6 | 7.5 | 17 | 8 | 16 | w-5 | 1 | |
| 1/2 | 2-1/4 | 1-5/16 | 11 | 9.8 | 22 | 9 | 18 | w-6 | 1-1/8 | |
| 9/16 | 2-1/2 | 1-1/2 | 14 | 12 | 28 | 10 | 20 | w-6 | 1-3/8 | |
| 5/8 | 2-13/16 | 1-11/16 | 17 | 15 | 35 | 11 | 22 | w-7 | 1-1/2 | |
| 3/4 | 3-3/8 | 2 | 25 | 22 | 49 | 12 | 24 | w-8 | 1-5/8 | |
| 7/8 | 4 | 2-5/16 | 33 | 29 | 67 | 14 | 28 | w-9 | 2 | |
| 1 | 4-1/2 | 2-11/16 | 43 | 38 | 87 | 16 | 32 | w-10 | – | |
