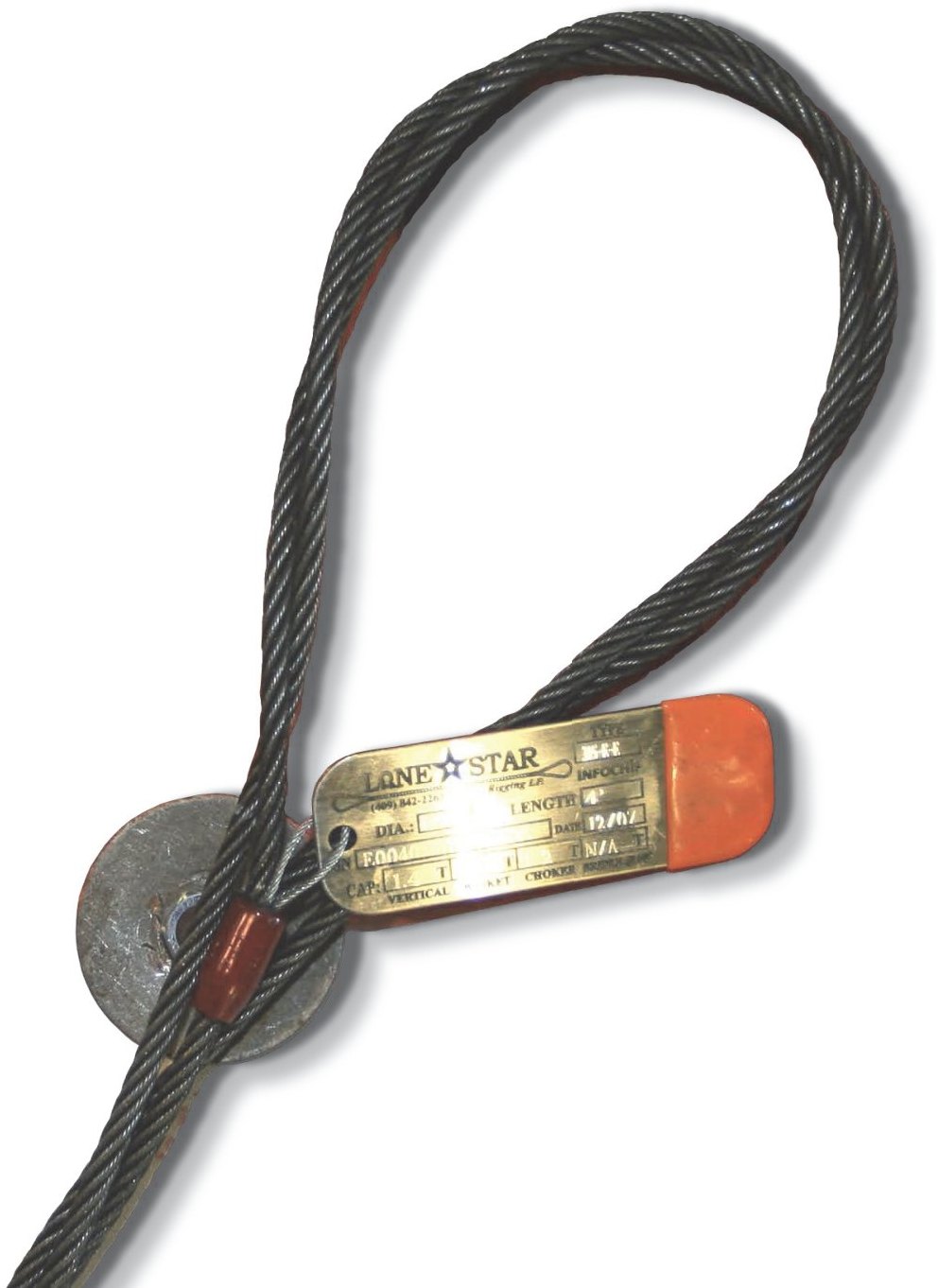

| 315 Three-Part Braided Wire Rope Sling | ||||||||
|---|---|---|---|---|---|---|---|---|
| Rope Dia. (in.) | Finished Diameter | Rated Capacity – Tons* | Eye Dimensions | Slip Thru Thimble ST | Heavy Thimble HT | |||

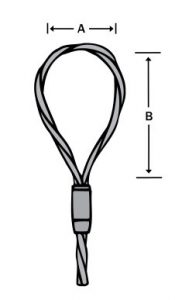

| Vertical | Choker Hitch | Basket Hitch | A | B | ||||
| #1/8" | 1/4" | 0.42 | 0.37 | 0.84 | 3 | 6 | W-2 | 5/16 |
| 3/16" | 3/8" | 0.8 | 0.71 | 1.6 | 3 | 6 | W-2 | 7/16" |
| 1/4" | 1/2" | 1.4 | 1.2 | 2.9 | 4 | 8 | W-4 | 5/8 |
| 5/16" | 5/8" | 2.2 | 1.9 | 4.4 | 4 | 8 | W-4 | 3/4 |
| 3/8" | 3/4" | 3.2 | 2.8 | 6.3 | 5 | 10 | W-5 | 7/8 |
| 7/16" | 7/8" | 4.3 | 3.7 | 8.6 | 6 | 12 | W-5 | 1 |
| 1/2" | 1" | 5.6 | 4.9 | 11 | 6 | 15 | W-6 | 1-1/8 |
| 9/16" | 1-1/8" | 7.1 | 6.2 | 14 | 7-1/2 | 18 | W-6 | 1-3/8 |
| 5/8" | 1-1/4" | 8.7 | 7.6 | 17 | 9 | 20 | W-7 | 1-1/2 |
| 3/4" | 1-1/2" | 12 | 11 | 25 | 10 | 22 | W-8 | 1-5/8 |
| 7/8" | 1-3/4" | 17 | 15 | 33 | 12 | 24 | W-9 | 2 |
| 1" | 2" | 22 | 19 | 43 | 15 | 30 | W-10 | – |
| 1-1/8" | 2-1/4" | 27 | 24 | 55 | 16 | 32 | ||
| 1-1/4" | 2-1/2" | 34 | 29 | 67 | 16 | 32 | ||
| 1-3/8" | 2-3/4" | 40 | 35 | 81 | 20 | 40 | ||
| 1-1/2" | 3" | 48 | 42 | 96 | 22 | 44 | ||
| 1-5/8" | 3-1/4" | 55 | 49 | 111 | 22 | 44 | ||
| 1-3/4" | 3-1/2" | 64 | 56 | 129 | 24 | 48 | ||
| 1-7/8" | 3-5/8" | 73 | 64 | 146 | 24 | 48 | ||
| 2" | 4" | 83 | 73 | 166 | 28 | 56 | ||
| Rated Capacities Basket Hitch based on D/d ratio of 25 times the component rope diameter. # Made with 7×19 GAC component rope. Rated Capacities based on pin diameter no larger than natural eye width or less than the nominal sling diameter. Rated Capacities based on design factor of 5. Horizontal sling angles of less than 30° shall not be used. All capacities in tons of 2,000 lbs. All eye and fitting dimensions in inches. | ||||||||
