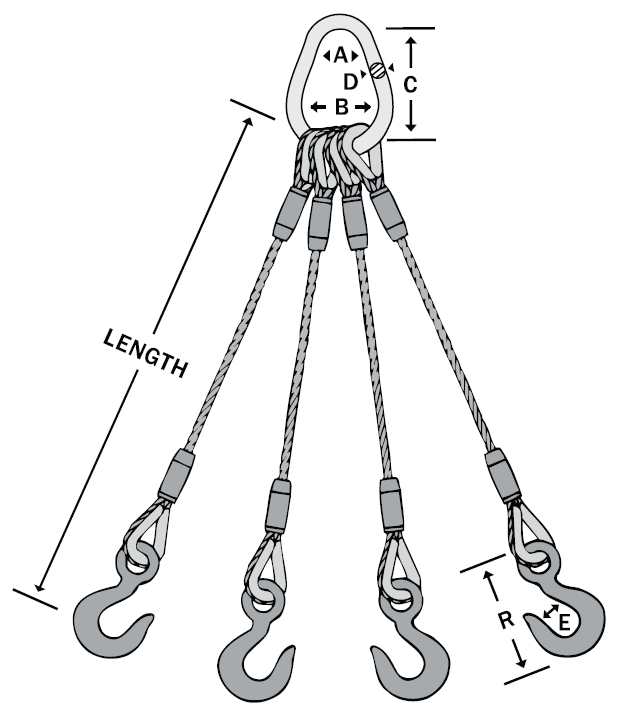

| 145-HT-EH Four Leg Bridles | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Rope Dia. (in.) | Rated Capacity – Tons* | Alloy Oblong Link | Hook | |||||||
| 60° | 45° | 30° | A | B | C | WLL** D | Tons | E | R | |
| 1/4 | 2.2 | 1.8 | 1.3 | 1.50 | 3.00 | 4.50 | 3/4 | 3/4 | 0.89 | 3.34 |
| 5/16 | 3.5 | 2.8 | 2.0 | 1.50 | 3.00 | 4.50 | 3/4 | 1 | 0.91 | 3.81 |
| 3/8 | 5.0 | 4.1 | 2.9 | 1.75 | 3.50 | 5.25 | 7/8 | 1-1/2 | 1.00 | 4.14 |
| 7/16 | 6.7 | 5.5 | 3.9 | 2.00 | 4.00 | 6.00 | 1 | 2 | 1.09 | 4.69 |
| 1/2 | 8.8 | 7.1 | 5.1 | 2.50 | 5.00 | 7.50 | 1-1/4 | 3 | 1.36 | 5.77 |
| 9/16 | 11 | 9.0 | 6.4 | 2.75 | 5.50 | 7.25 | 1-3/8 | 5 | 1.61 | 7.37 |
| 5/8 | 14 | 11 | 7.8 | 3.00 | 6.00 | 9.00 | 1-1/2 | 5 | 1.61 | 7.37 |
| 3/4 | 19 | 16 | 11 | 3.50 | 7.00 | 10.50 | 1-3/4 | 7-1/2 | 2.08 | 9.07 |
| 7/8 | 26 | 21 | 15 | 3.50 | 7.00 | 10.50 | 1-3/4 | 10 | 2.27 | 10.08 |
| 1 | 34 | 28 | 20 | 4.00 | 8.00 | 12.00 | 2 | 10 | 2.27 | 10.08 |
| 1-1/8 | 42 | 34 | 24 | 4.50 | 9.00 | 13.50 | 2-1/4 | 15 | 3.02 | 12.53 |
| 1-1/4 | 51 | 42 | 30 | 5.00 | 10.00 | 15.00 | 2-1/2 | 15 | 3.02 | 12.53 |
| 1-3/8 | 62 | 50 | 36 | 6.00 | 12.00 | 18.00 | 3 | AH-22 | 3.02 | 12.53 |
| 1-1/2 | 73 | 60 | 42 | 6.00 | 12.00 | 18.00 | 3 | AH-22 | 3.02 | 12.53 |
