Flexibility and handling ease for rigging large lifts are the main benefits of the 9-part slings. The 9-part sling is made by laying wire rope continuously through both eyes and the sling body. This results in a body formed with nine parts.
The proven design provides internal adjustment to distribute the load among all nine parts of the sling body. Additionally, the construction makes it possible to more easily inspect all parts of the sling before and after each lift, which is important to remember if the sling is to be used many times.
Only two splices occur in the entire sling where the two rope ends are spliced at the eyes. A 9-part sling construction exhibits constructional stretch of approximately 1.5% on the first loading and a lesser amount thereafter. For this reason, lifts that use two or more legs should always be made with legs that have been subjected to the same past usage when such stretch may affect the lift.
When a sling body must conform to a tight choke hitch or must bend in a tight radius, such as around a pin or post, a 9-part construction may be the most suitable since it can develop greater lifting capacity from a smaller component rope.
| 915 Nine-Part Braided Wire Rope Sling | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XIP IWRC Component Rope Diameter |
Rated Capacity – Tons* | Sling Dimensions | Sling Body Diameter |
Sling Body Diameter |
Approximate Weight Per Foot (Pounds) |
|||||||
| Vertical | Choker 120° |

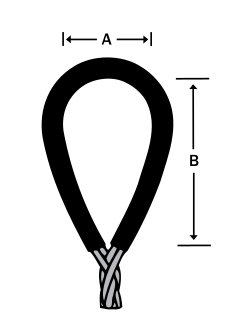

Basket Hitches | Eye Width (Inches) |
Eye Length (Inches) |
Minimum Sling Length (Ft.) |
|||||||
| Basket Hitch Legs 90° |
Bridle Hitch 60° |
Bridle Hitch 45° |
Bridle Hitch 30° |
|||||||||
| 1/4" | 4.9 | 0.5 | 9.8 | 8.5 | 6.9 | 4.9 | 6 | 12 | 3.67 | 1" | 1.00 | 1 |
| 5/16" | 7.6 | 6.6 | 15.2 | 13.1 | 10.7 | 7.6 | 6 | 12 | 4.08 | 1-1/4" | 1.25 | 2 |
| 3/8" | 10.9 | 10 | 22 | 18.8 | 15.4 | 10.9 | 7.5 | 15 | 5.00 | 1-1/2" | 1.50 | 3 |
| 7/16" | 14.7 | 13 | 29 | 25 | 21 | 15 | 9 | 18 | 5.92 | 1-3/4" | 1.75 | 4 |
| 1/2" | 19.2 | 17 | 38 | 33 | 27 | 19 | 10 | 20 | 6.67 | 2" | 2.00 | 5 |
| 9/16" | 24.2 | 21 | 48 | 42 | 34 | 24 | 12 | 24 | 7.75 | 2-1/4" | 2.25 | 6 |
| 5/8" | 29.7 | 26 | 59 | 51 | 42 | 30 | 12 | 24 | 8.17 | 2-1/2" | 2.50 | 8 |
| 3/4" | 42.3 | 37 | 85 | 73 | 60 | 42 | 15 | 30 | 10.00 | 3" | 3.00 | 11 |
| 7/8" | 57.3 | 50 | 115 | 99 | 81 | 57 | 17 | 34 | 11.50 | 3-1/2" | 3.50 | 15 |
| 1" | 74.4 | 65 | 149 | 129 | 105 | 74 | 20 | 40 | 13.33 | 4" | 4.00 | 20 |
| 1-1/8" | 93.6 | 82 | 187 | 162 | 132 | 94 | 22 | 44 | 14.83 | 4-1/2" | 4.50 | 25 |
| 1-1/4" | 129.4 | 113 | 259 | 224 | 183 | 129 | 25 | 50 | 16.67 | 5" | 5.00 | 31 |
| 1-3/8" | 138.2 | 121 | 276 | 239 | 195 | 138 | 27 | 54 | 18.17 | 5-1/2" | 5.50 | 38 |
| 1-1/2" | 164.2 | 144 | 328 | 284 | 232 | 164 | 30 | 60 | 20.00 | 6" | 6.00 | 45 |
| 1-3/4" | 220.3 | 193 | 441 | 382 | 312 | 220 | 35 | 70 | 23.33 | 7" | 7.00 | 61 |
| 2" | 285.1 | 249 | 570 | 494 | 403 | 285 | 40 | 80 | 26.67 | 8" | 8.00 | 80 |
| 2-1/2" | 434.9 | 381 | 870 | 753 | 615 | 435 | 50 | 100 | 33.33 | 10" | 10.00 | 125 |
| 3" | 612.0 | 536 | 1224 | 1060 | 865 | 612 | 60 | 120 | 40.00 | 12" | 12.00 | 179 |
| 3-1/2" | 812.2 | 711 | 1624 | 1407 | 1148 | 812 | 70 | 140 | 46.67 | 14" | 14.00 | 244 |
| Standard Rated Capacities for a Basket Hitch are based on D/d Ratio of 25 to 1 of the Component Rope Rated Capacities based on pin diameters twice the body diameter and no larger than natural eye width. Sling Angles less than 30° shall not be used Choker Capacity based on a 120° angle of choke. / Choke Point Connection based on a Minimum D/d of 2 | ||||||||||||
