CAM-ALLOY CHAIN SLINGS | ||||||||
GRADE 100 WORKING LOAD LIMITS* (LBS.) | ||||||||

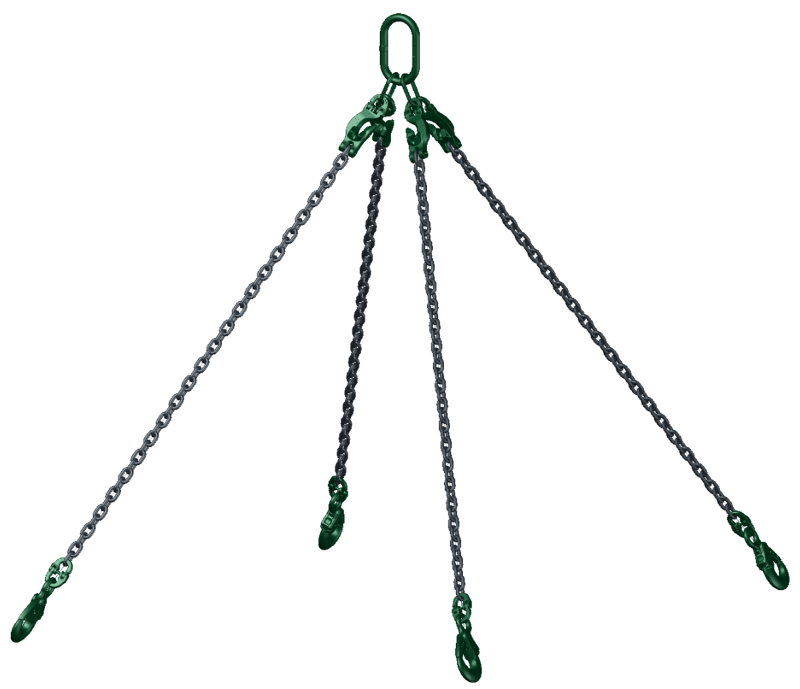

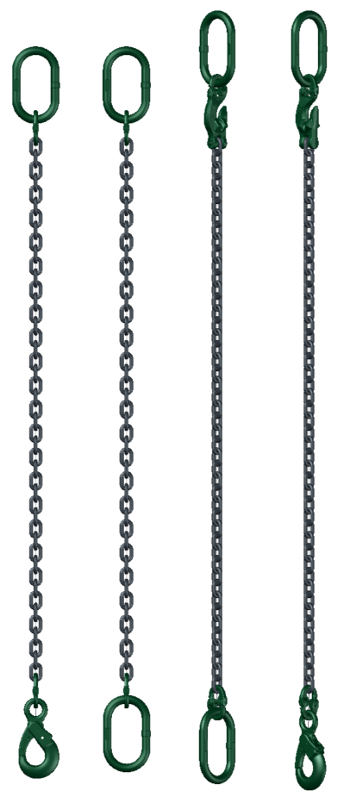

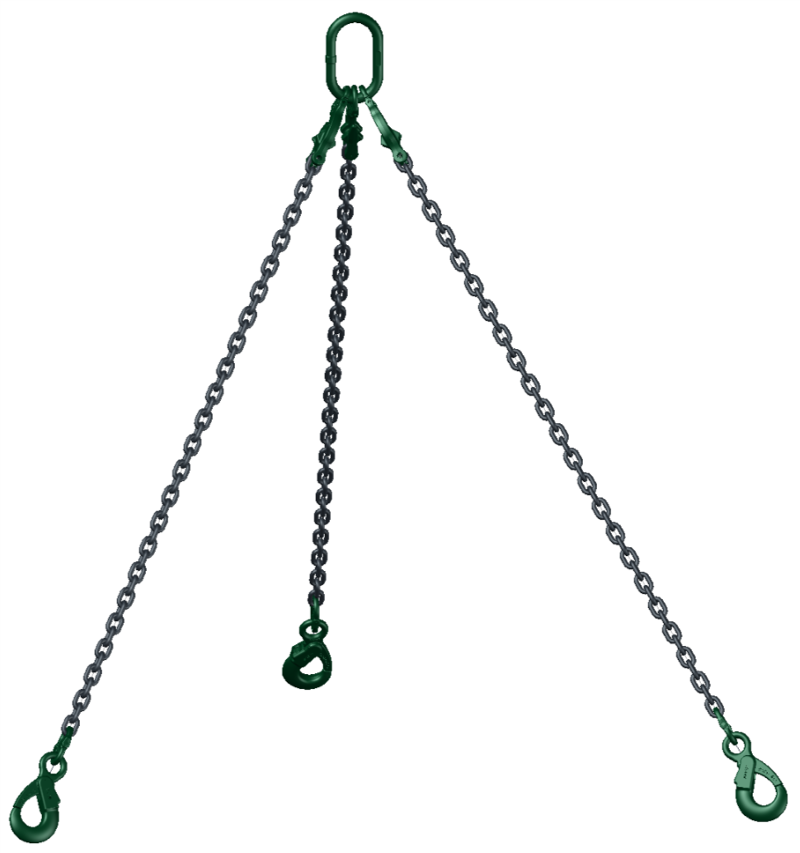

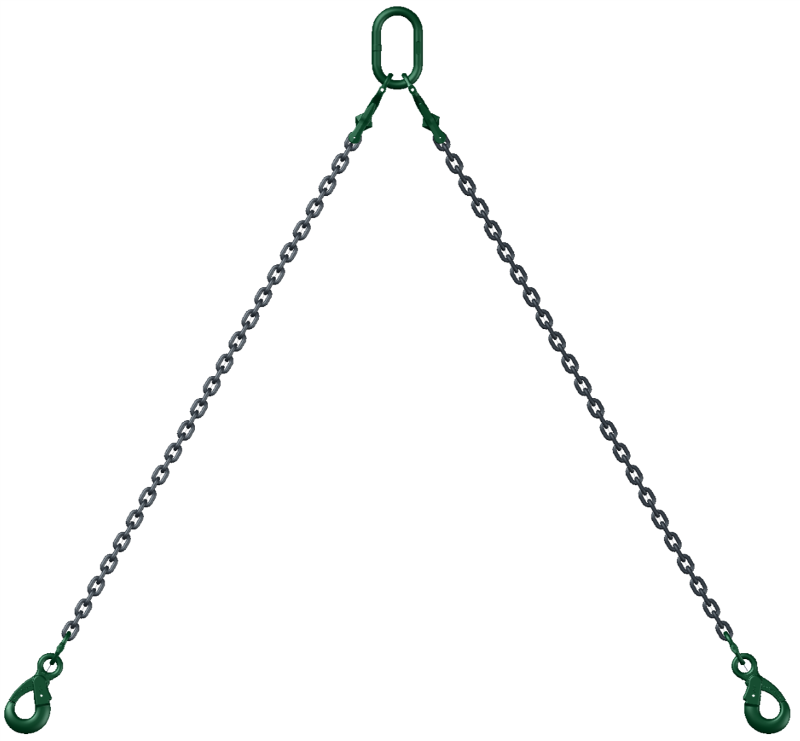

Trade Size | Single Sling Type S | Double Slings Type D | Triple Type T and Quadruple Type Q Slings | Trade Size | ||||
(inches) | 90˚ | 60˚ | 45˚ | 30˚ | 60˚ | 45˚ | 30˚ | (MM) |
9/32″ | 4300 | 7400 | 6100 | 4300 | 11200 | 9100 | 6400 | 7 |
5/16″ | 5700 | 9900 | 8100 | 5700 | 14800 | 12100 | 8500 | 8 |
3/8″ | 8800 | 15200 | 12400 | 8800 | 22900 | 18700 | 13200 | 10 |
1/2″ | 15000 | 26000 | 21200 | 15000 | 39000 | 31800 | 22500 | 13 |
5/8″ | 22600 | 39100 | 32000 | 22600 | 58700 | 47900 | 33900 | 16 |
3/4″ | 35300 | 61100 | 49900 | 35300 | 91700 | 74900 | 53000 | 20 |
7/8″ | 42700 | 74000 | 60400 | 42700 | 110900 | 90600 | 64000 | 22 |
